Structural Fittings & Accessories
Winch, Pulley & Parts for Feeding and Drinking Lines
Winches from 300kg to 1500kg, cast-iron and nylon pulleys, U-bolts, pipes, drive motors and drop irons.
Price on request— quoted per house size and configuration
Enquire about this product
Send us the model and quantity you need. We reply with price, availability and delivery time.
Overview
Every suspended line needs lifting gear rated for the job. These are the winches, pulleys and fittings we specify for feeding lines, drinking lines, air inlets and cage breeding — matched by rated load so nothing is over-run.
Parts & accessories
Cast Iron Pulley
- Model
- 3-1/2"
- Material
- Cast iron
Nylon Pulley
- Model
- 1-1/2"
- Material
- Nylon
Nylon Pulley
- Model
- 7/8"
- Material
- Nylon
Driving Hook

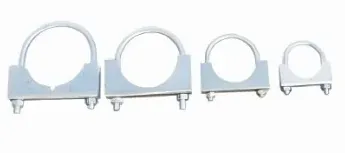

U-Bolt
- Diameters
- 100mm, 90mm, 75mm, 60mm, 45mm

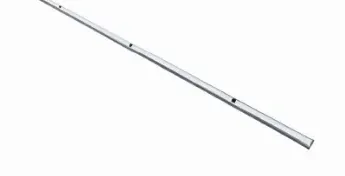

Feeding Pipe
- Diameter
- Φ100mm
- Thickness
- 1.2mm
- Length
- 3040mm

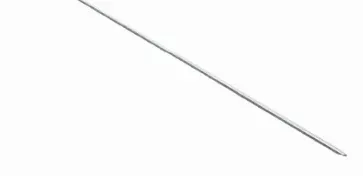

Support Pipe
- Diameter
- Φ100mm
- Thickness
- 1.0mm
- Length
- 3040mm

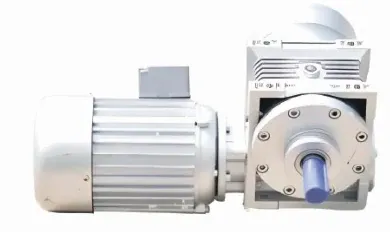

Drive Motor
- Power
- 500W
- Voltage
- 380V
- Frequency
- 50Hz
- Rated speed
- 1400RPM
- Ratio
- 700:1
- Torque
- 500NM
- Application
- Air inlet
Adjustor
Drop Iron
Winch — Feeding Line
- Rated load
- 3500 lbs (1500kg)
- Ratio
- 38:73:1
- Hub diameter
- 93mm
- Surface
- Chrome / spray
Winch — Feeding Line
- Rated load
- 3000 lbs (1360kg)
- Ratio
- 38:73:1
- Roller diameter
- 93mm
- Surface
- Chrome / spray
Winch — Drinking Line
- Rated load
- 1500 lbs (680kg)
- Ratio
- 41:1
- Roller diameter
- 49mm
- Process
- Worm / worm-wheel
- Surface
- Chrome / spray
Winch — Air Inlet
- Rated load
- 1500 lbs (680kg)
- Ratio
- 41:1
- Roller diameter
- 49mm
- Process
- Worm / worm-wheel
- Surface
- Chrome / spray
Also available
- Winch for cage breeding / air inlet — rated load 660 lbs (300kg), ratio 5:1, chrome or spray surface.
