Feeding Systems

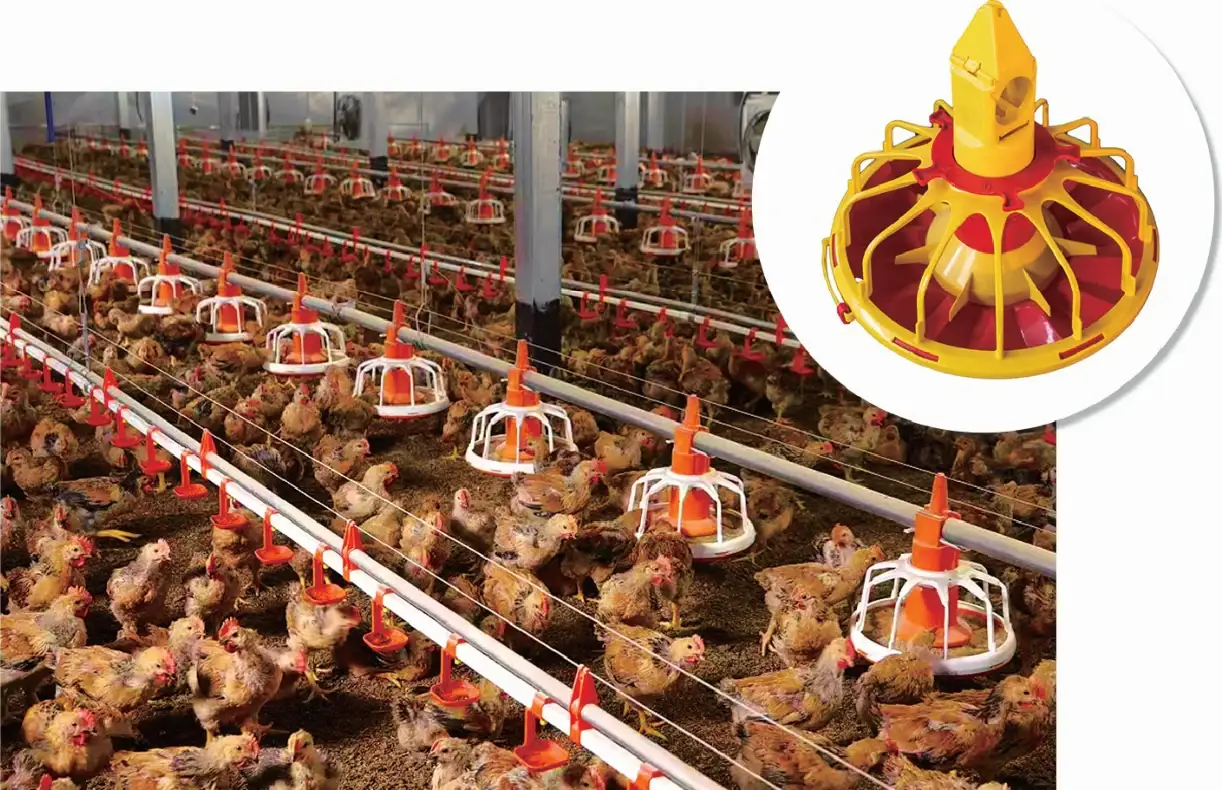

Automatic (Pan) Feeding System
Sensor-controlled pan feeding line — hopper, auger, trays and winch lifting — that runs the house without manual intervention.
Price on request— quoted per house size and configuration
Enquire about this product
Send us the model and quantity you need. We reply with price, availability and delivery time.
Overview
The pan feeding system consists of a driving device, hopper, conveying pipe, auger, feed trays, a suspension lifting device, an anti-perching device and a feed sensor. Feed is conveyed from the hopper into each tray so every broiler is fed.
The material-level sensor opens and closes the conveying motor automatically, which is what makes the line genuinely automatic rather than merely mechanised.
System components

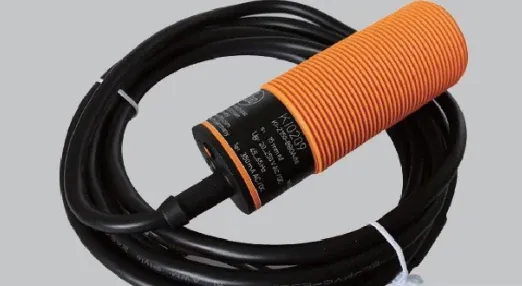

Sensor
IFM sensor (Germany), used to detect feeder-pan material level.

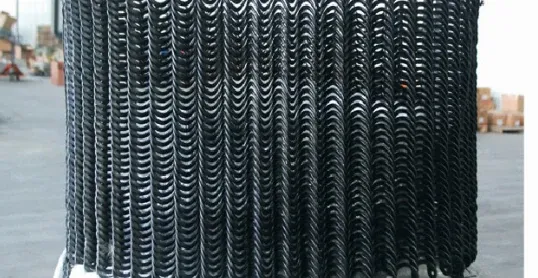

Auger
Helical spring auger (South Africa), feeding capacity 450kg/h; diameters 36#, 49#, 63#, 75#, 90# — customisable.

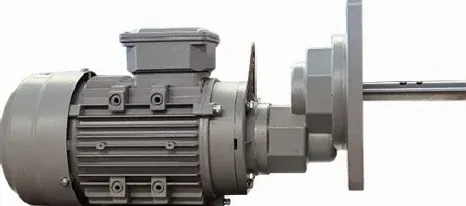

Motor
Taiwan/Italy high-quality special driving reduction motor, IP55 protection, aluminium alloy frame, good heat dissipation.

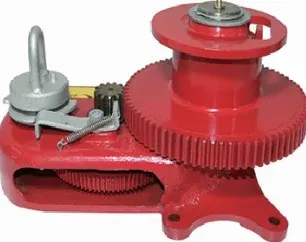

Hanging System
Winch, pulley, S-hook, steel wire and related parts; maximum lifting weight 1600kg.

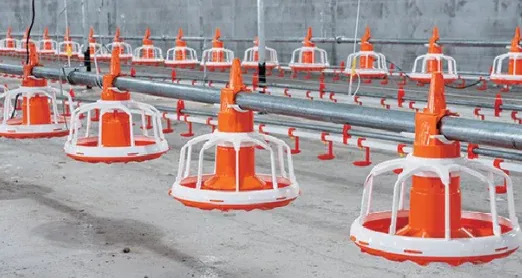

Feeder Pan
360° rotation prevents injury to chickens; 14-grill design for easy access with a special spill-proof edge.
Guides
Background reading on where this equipment fits in a poultry house.
- Feeding
Farm managementEquipment checklist for a 2,000-bird broiler house
A build-order walk through a small broiler house: shed, power, brooding, feed, water, air, catching and spares, with what to decide before you spend.
4 min read

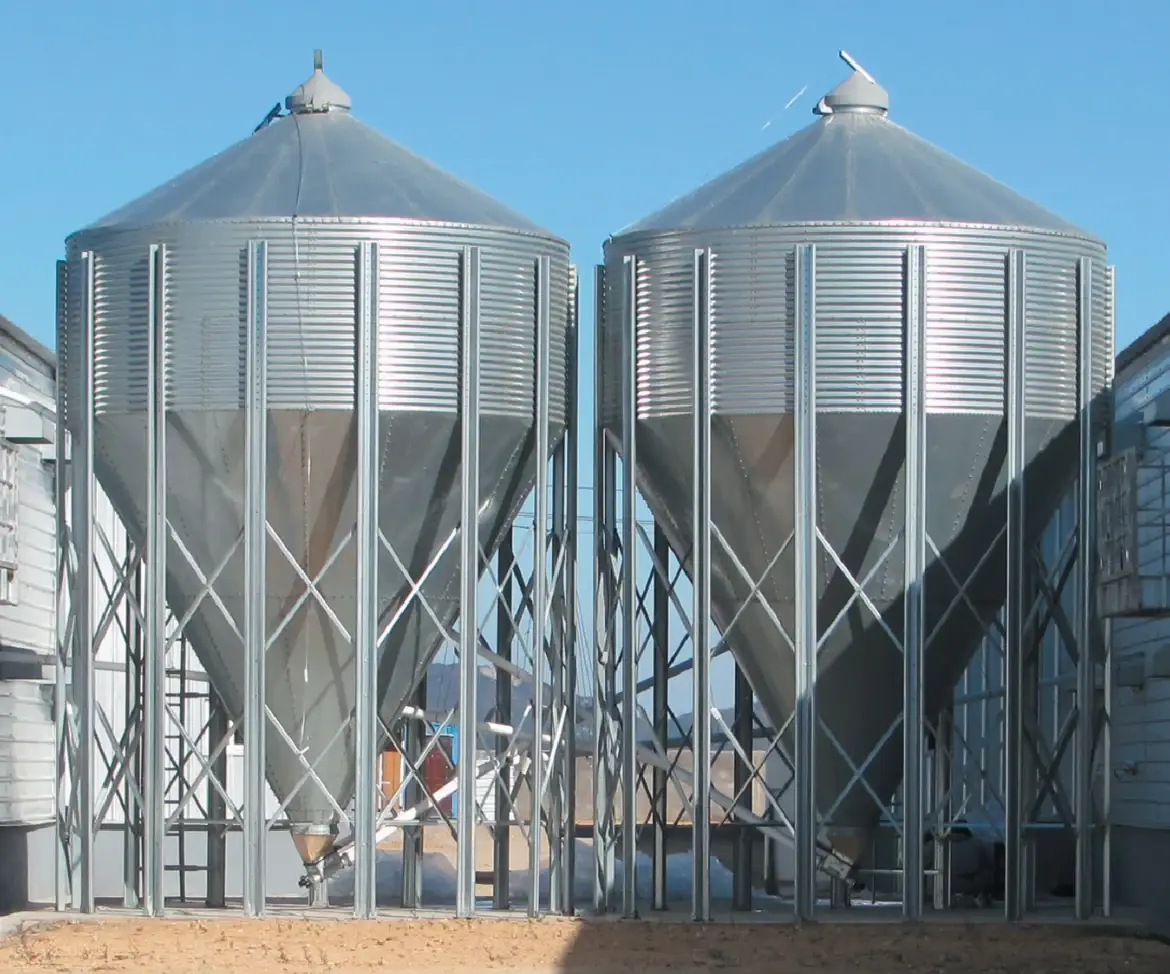

FeedingFeed storage: what the monsoon, the rats and the spillage cost you
Feed is your biggest cost and the easiest to lose in a damp store. What a galvanised silo changes, and how to tell whether bulk delivery pays on your farm.
4 min read
Related equipment

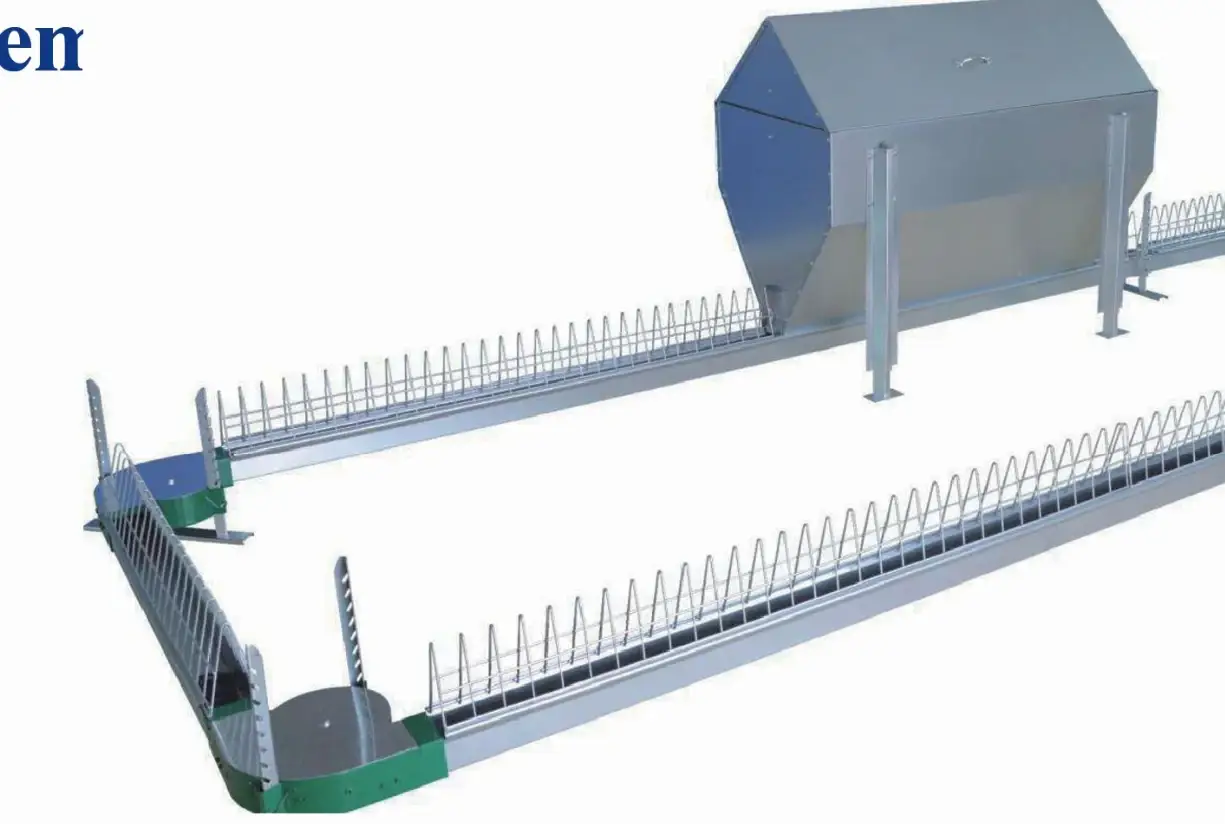

Feeding SystemsBreeder Feeding System
Chain feeding line that fills every pan at the same moment, so the whole flock eats together and grows evenly.
9 photos

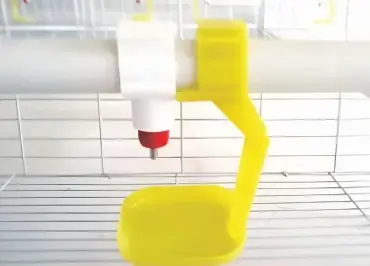

Structural Fittings & AccessoriesAssemble Fittings
The consumable parts of a working house — troughs, nipple drinkers, drip cups, filters, regulators, tanks and chick equipment.
12 parts12 photos

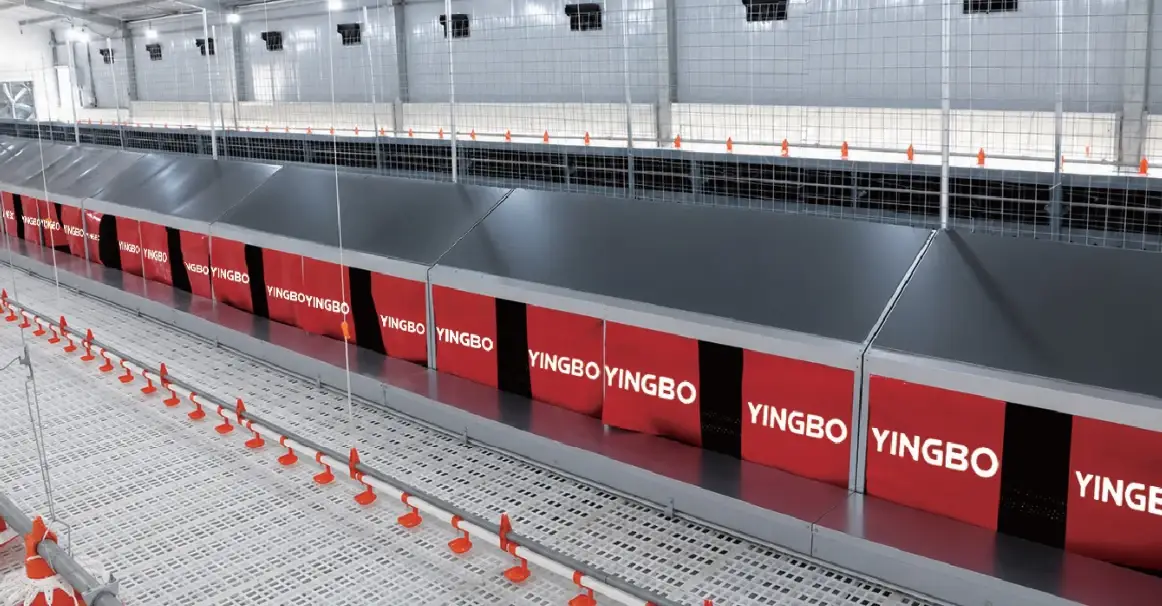

Egg CollectionAutomatic Laying Nest
