CagingThree tiers, four or six? Reading a layer cage specification properly
Tier count is decided by your ceiling height and ventilation, not by the birds. How to read the H-type cage table and work out what your shed can hold.
4 min read
Caging Systems
H-Type Layer Cage Rearing System
High-density H-type layer battery that saves about 70% of the land an A-type system needs, with belt manure removal.
Price on request— quoted per house size and configuration
Enquire about this product
Send us the model and quantity you need. We reply with price, availability and delivery time.
Overview

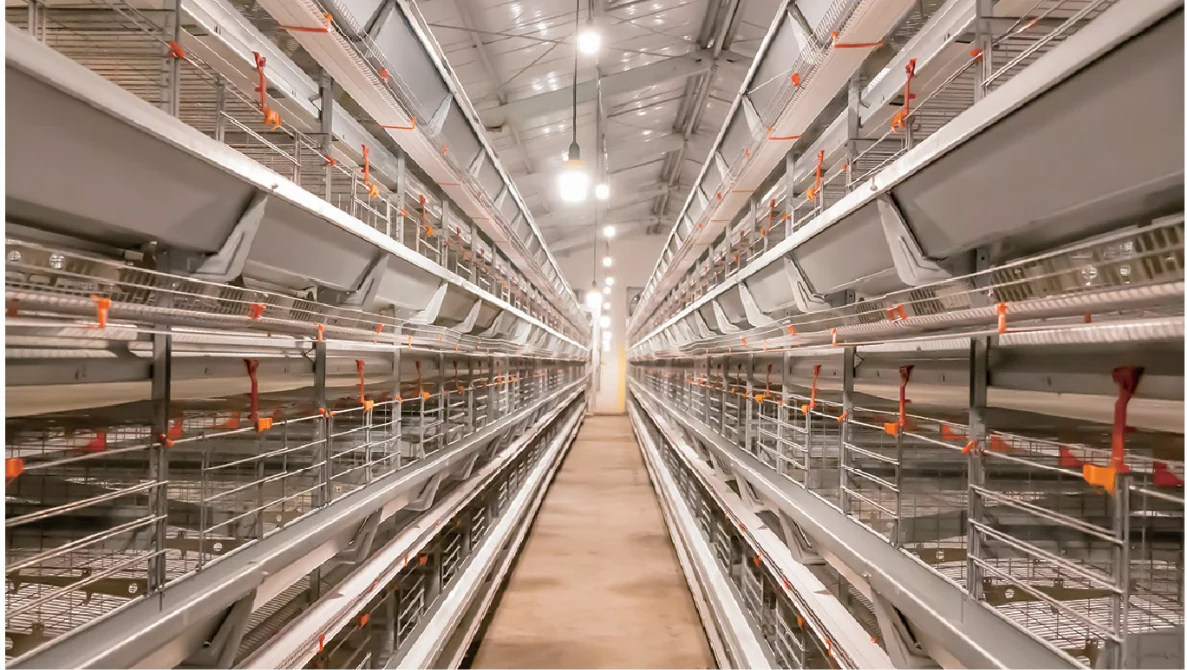

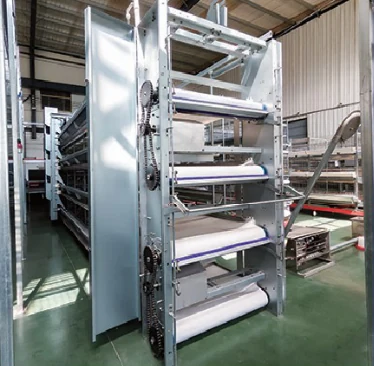

The H-type layer cage rearing system stacks tiers vertically in a large laminated cabinet frame, so a house holds far more birds on the same footprint than an A-type battery. Manure leaves on a belt under each tier and is granulated, which keeps ammonia down and turns a disposal problem into a saleable by-product.
It is the standard choice for producers who need environmentally-protected egg production at scale.
Technical drawings

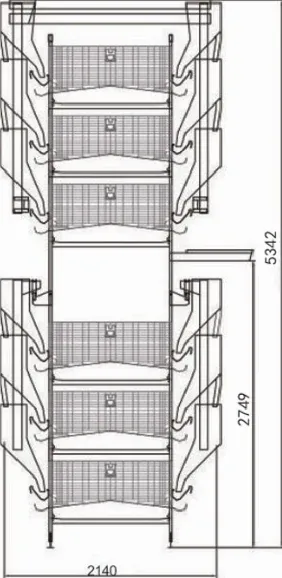

Cross-section drawing of a 3-tier H-type layer cage

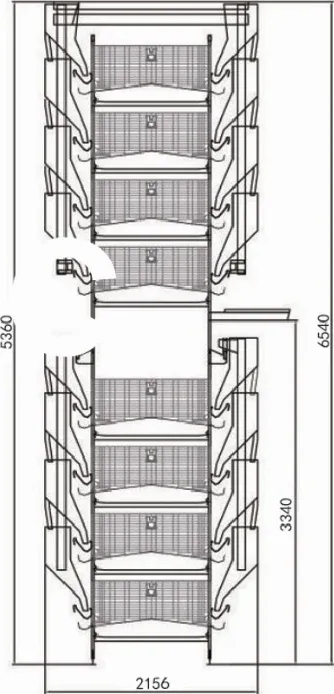

Cross-section drawing of a 4-tier H-type layer cage

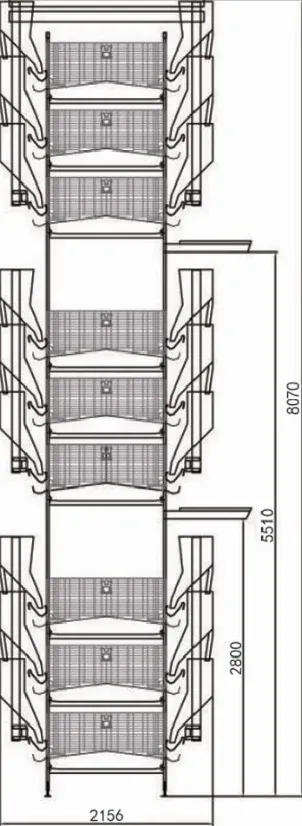

Cross-section drawing of a 6-tier H-type layer cage
