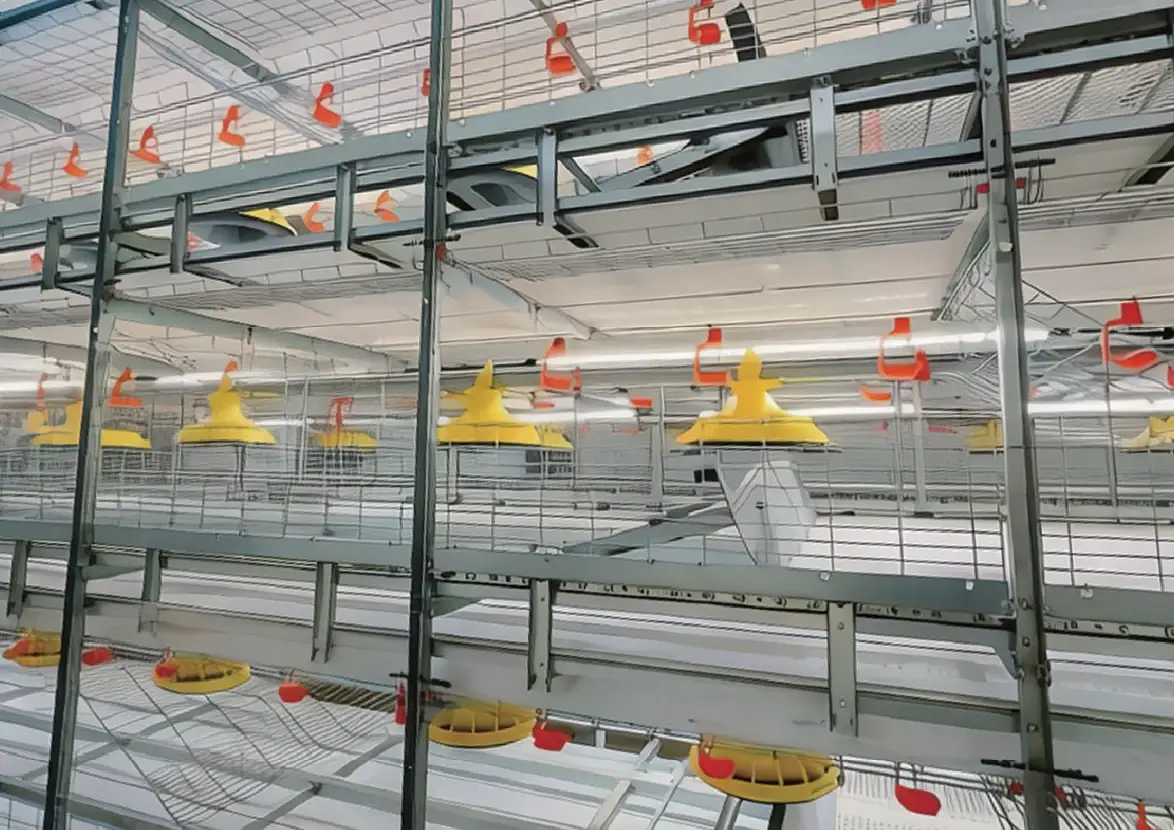

Automatic Harvesting Broiler Cage
Battery cage that transports broilers out of the house automatically, with daily manure removal and survival rates up to 99.8%.
Price on request— quoted per house size and configuration
Enquire about this product
Send us the model and quantity you need. We reply with price, availability and delivery time.
Overview
Catching is the hardest, most stressful job in a broiler house. This system transports birds out automatically, so move-out is quicker, calmer and needs fewer hands — and marketing weight comes out more uniform as a result.
Manure is removed daily rather than at the end of the batch, so in-house ammonia stays low and cleaning and disinfection between batches is simple.

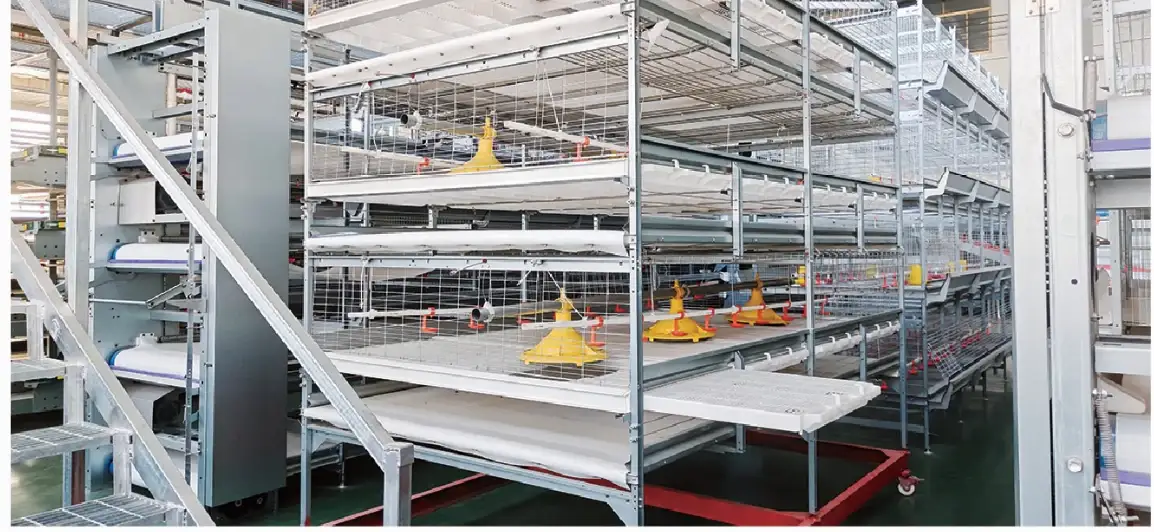

Automatic Push-Pull Harvest Broiler Cage
An extended variant of the automatic harvesting cage, built for continuous large-scale broiler production.
- Cage frame: Q235 high-quality steel with a 275g/m² hot-dip galvanised coating for superior corrosion resistance.
- Automatic bird harvesting system: transports broilers out of the house; daily manure removal keeps in-house ammonia emissions to a minimum.

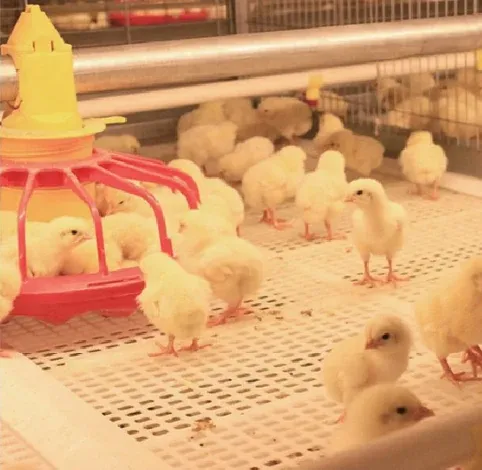

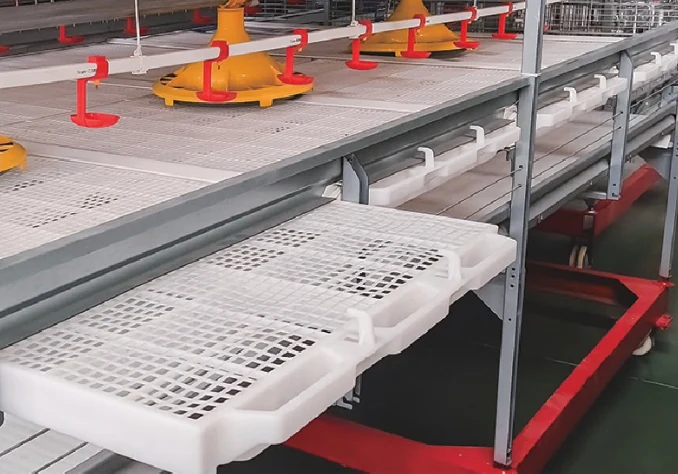

- Plastic slat floor: pull-type soft PP flooring prevents breast blisters, promotes clean and healthy feet, and enables quick, efficient broiler move-out.
- 4-tier battery cage: 2–4x higher capacity than floor rearing, high space utilisation and reduced heating and cooling energy costs.
